TICSQServer

TICSQServer is the main application that is used to fill the quality database. TICSQServer is meant to be run regularly, e.g., on a daily (nightly) basis.

The steps of a TICSQServer run are described below. A full overview of all possible command line options is also given.

Running TICSQServer

TICSQServer [option...] [inputfile...]

TICSQServer accepts a list of inputfiles. Each inputfile is a file or directory that

  1. possibly contains wildcards or
  2. is prefixed with '@' to denote a project file

Note that all specified files must be within one of the specified views of the project (in the SERVER.yaml project configuration).

Authentication

The TICS Analyzer needs to authenticate itself when communicating with the viewer. Please refer to configuring an authentication token.

TQI Version

TICSQServer controls which TQI version should be used by the viewer to compute the TQI. Each time an analysis is performed, TICSQServer puts the TQI version that should be used for that analysis in the database. This is always the latest TQI version that TICSQServer supports.

Exit value

TICSQServer provides information about the status of the run as follows. In case of a successful run the exit status is 0. In case of an unsuccessful run, the exit code is an integer unequal to 0. The exact value of a non-zero exit code is subject to the OS and the shell interpreter in which the TICSQServer command is invoked.

Note that the semantics of the exit status is changed when running with the -exitsqa option. When running with the -exitsqa option, the exit value may still be non-zero in case of a "successful" run. Namely, in case the run does not satisfy the QA criteria (i.e., fails to meet the required QA targets).

Generate a temporary directory (Diagnostic data)

If you encounter an issue with TICSQServer and report this to your TICS representative, it can be that you are asked to provide a temporary directory or tmpdir of your run. This temporary directory contains various artifacts of the TICS run and log files containing all actions TICS has taken. As such, this directory contains useful debugging information for the TIOBE service engineer and the TICS development team to diagnose and resolve your issue. Dependent on your preferred way of working, there are two ways to generate this directory.

To generate a temporary directory from the command line, add the following argument to your command line invocation to write a temporary directory to the location of $TMPDIR.

  TICSQServer $(your_args_here) -tmpdir $TMPDIR $(your_files_here).

So, to give an example of what this would look like if you wanted to write your temporary directory to F:/tmp:

  TICSQServer -project AppDatabase -recalc BEGIN,CS,END -tmpdir F:/tmp AppDatabaseClass.java

Steps of the Quality Database Update Process

TICSQServer runs for the project specified on the command line via the -project option. For a project, new and changed files are processed first, followed by any files that failed to be correctly processed the last time.

TICSQServer processes files in this order for the following reason. When the time restrictions for the run are not large enough to analyze both the new and previously failed files, this arrangement allows all new files to be analyzed first. Since files that failed the previous run are likely to fail again (unless proper action has been taken), processing such files mostly consumes time without providing new data.

Before starting the update of the quality database, TICSQServer optionally performs the following step:

After finishing the update of the quality database, TICSQServer optionally performs a post analysis step:

The following steps are performed when updating the quality database. Not all steps are always performed. Some steps are optional and can be configured via command line options. Other steps are only performed under certain conditions. The order of the steps is fixed since there are causal dependencies between steps.
Backup [-nobackup]
Create a backup of the database. This step is optional and can be suppressed via the -nobackup option.
Prepare [-calc PREPARE]
Run any archive preparation steps. These include SCM updates and build steps.
Changed Files [-calc CHANGEDFILES]
Traverse the file system starting at the root of a branch set in the PROJECTS.yaml and/or quality database and/or passed as a command line option for the given project. Directories and files matching the expressions in the ARCHIVE file are accepted and collected for further processing.

Update the file information in the database.

  • New files are added.
  • Removed files are marked "deleted".
  • Modified files (determined by a checksum based on the contents of a file) are updated. Updating a file means appending a new instance of the file to its life cycle.
All new and modified files get the status 'not checked'. This means they have to be rechecked further on in the process.
Build Relations [-calc BUILDRELATIONS]
Calculate the build relations between source files and make files. This is done for new or changed build files only. First, the build file relations of changed build files are removed. Next, for each build file all filenames within the build file are collected and the relation is stored in the database.
If your relations of source file to build file are relatively easy to calculate (ie. the build file necessary will always be in either the source file's directory or a parent directory) then it is also possible to enable the PARTIALBUILDUPDATEONCALC option in the TICS configuration. If this is used, a -calc BUILDRELATIONS will also take individual changed source files into account, by doing a quick search of which potential makefile is likely to contain it.
Include Relations [-calc INCLUDERELATIONS]
Calculate the include relations between source files (only C and C++) First, all the include relations of the changed source files are removed. Next, each source file is scanned for include files. Using the build file options, the actual included files (mostly header files) are found and the relations are stored in the database. This process is done recursively on all the included files (registering each relation only once to speedup the process and to avoid circular include problems).
Lines of Code [-calc LOC]
Calculate the Lines of Code (LOC). Lines of Code counts the actual number of lines excluding those lines that are considered generated as can be specified in the TICS LANGUAGES section.
Effective Lines of Code [-calc ELOC]
Calculate the Effective Lines of Code (ELOC). Effective Lines of Code are all source lines that actually contribute to the program. This excludes all blank lines, comment lines and lines that only contain braces.
Lines of Code including Generated Code [-calc GLOC]
Calculate the Lines of Code including Generated Code (GLOC). The result of this step is the number of lines of each file as it would be reported by an editor.
Lines Added [-calc LINESADDED]
Calculate the number of lines added to the source code lines. This is the number of lines added since the previous measurement.
Lines Deleted [-calc LINESDELETED]
Calculate the number of lines deleted from the source code lines. This is the number of lines removed since the previous measurement.
Lines Changed [-calc LINESCHANGED]
Calculate the number of lines changed with respect to the source code lines. This is the number of lines changed since the previous measurement.
Change Rate [-calc CHANGERATE]
Aggregation of Lines Added, Lines Deleted and Lines Changed.
Accumulative Lines Added [-calc ACCULINESADDED]
Calculate the accumulative number of lines added to the source code lines over the project's life-time.
Accumulative Lines Deleted [-calc ACCULINESDELETED]
Calculate the accumulative number of lines deleted from the source code over the project's life-time.
Accumulative Lines Changed [-calc ACCULINESCHANGED]
Calculate the accumulative number of lines changed with respect to the source code lines over the project's life-time.
Accumulative Change Rate [-calc ACCUCHANGERATE]
Aggregation of Lines Added, Lines Deleted and Lines Changed over the project's life-time.
Unit Test Coverage [-calc UNITTESTCOVERAGE / -calc UTC]
Calculate the test coverage of unit tests, based on data generated by external tools.
Integration Test Coverage [-calc INTEGRATIONTESTCOVERAGE / -calc ITC]
Calculate the test coverage of integration tests, based on data generated by external tools.
System Test Coverage [-calc SYSTEMTESTCOVERAGE / -calc STC]
Calculate the test coverage of system tests, based on data generated by external tools.
Total Test Coverage [-calc TOTALTESTCOVERAGE / -calc TTC]
Calculate the test coverage of total tests, based on data generated by external tools or aggregation of unit, integration and system test coverage data.
Coding Standard Violations [-calc CODINGSTANDARD / -calc CS]
Calculate the coding standard violations of each changed, new or previously failed file. All files marked as not checked are analyzed. These can be new files added, changed files whose contents has been modified or files that failed in the previous run. Files can fail to be successfully analyzed for various reasons. The file could not be compiled, the file was not in a makefile or internal analyzer problems stopped the analyzing process. If a file succeeds, all violations found are stored in the database.
Compiler Warnings [-calc COMPILERWARNING / -calc CW]
Calculate the compiler warnings. This takes warning output from the compiler normally used by the build process and turns these into violations. The violations are aggregated and can be shown as totals, per level or per category, just as for coding standard violations.
Abstract Interpretation [-calc ABSTRACTINTERPRETATION / -calc AI]
Calculate the abstract interpretation. This takes all files in the archive into account; not just the changed files. This is because this analysis exceeds file boundaries and analyzes inter-file relations.
Code Security [-calc SECURITY / -calc SEC]
Calculate the code security violations. This takes all files in the archive into account; not just the changed files. This is because this analysis exceeds file boundaries and analyzes inter-file relations.
Cyclomatic Complexity [-calc CYCLOMATICCOMPLEXITY / -calc CY]
Combines Average Cyclomatic Complexity and Maximum Cyclomatic Complexity (see below).
Average Cyclomatic Complexity [-calc AVGCYCLOMATICCOMPLEXITY]
Calculate the average cyclomatic complexity of each file. The average cyclomatic complexity of a file is defined as the sum of the cyclomatic complexities of all functions/methods defined in the file divided by the number of functions/methods in the file.
Maximum Cyclomatic Complexity [-calc MAXCYCLOMATICCOMPLEXITY]
Calculate the maximum cyclomatic complexity of each file. The maximum cyclomatic complexity of a file is defined as the maximum of the cyclomatic complexities of all functions/methods defined in the file.
Fan Out [-calc FANOUT]
Calculate the fan-out of each file. Fan-out is dependency on other coding units outside the current module. This is further split by three different types of fan-out:
  1. Internal fan-out: dependency on coding units inside the software system
  2. External fan-out: dependency on coding units outside the software system
  3. Unclassified fan-out: dependency on coding units when it is not possible to determine whether dependencies are inside or outside the software system
Dead Code [-calc DEADCODE]
Calculate dead code in the archive. This takes all files in the archive into account. Dead code analysis attempts to find all functions that are not used and all files that are not buildable.
Code Duplication [-calc DUPLICATEDCODE / -calc DUP]
Calculate code duplication in the archive. This takes all files in the archive into account. Code duplication attempts to find all code fragments that are shared between at least two separate locations.
Fix Rate [-calc FIXRATE]
Calculate the fix rate for each file. Fix rate attempts to correlate problem reports from an issue tracker to a file. It tracks which files are changed to solve certain issues.
Accumulative Fix Rate [-calc ACCUFIXRATE]
Calculate the accumulative fix rate for each file. This tracks all issues related to the file's life time.
Finalize [-calc FINALIZE]
  1. Generate the Organizational View.
  2. Generate viewer caches.
  3. Generate SQA reports.
  4. Send status mails.
Post Analysis [-calc POSTANA]
Run any post analysis steps.

Combining common steps with shortcuts

The following shortcuts can be used to combine common steps at the beginning and end of the analysis.

-calc BEGIN
Performs the following steps: PREPARE, CHANGEDFILES, BUILDRELATIONS and INCLUDERELATIONS.
-calc END
Performs the following steps: FINALIZE, and POSTANA.

Filtering metric steps by language

By using the -language option, it is possible to run metric analysis steps only for a set of languages. This allows you to save time on a run if you are currently only interested in new data for certain languages. For instance, -language JAVA,PYTHON will only run analyzers for the Java and Python code in your archive.

Automatic recalculation triggers on metrics

TICSQServer is able to detect certain changes in the analysis environment automatically, and will trigger automatic recalculations to bring your analysis data up to date to match the new environment.

The following triggers are available for all TQI metrics:

The following triggers are available for violation-based metrics:

If automatic recalculations are not desired behaviour (for instance if a full recalculation takes very long and this should only be done on schedule) these can be disabled via the -noautorecalc option in the TICSQServer invocation. This command line option will also override any configuration options that enable recalculations.

Running multiple TICSQServer instances in parallel with the -parallel flag

To speed up your analysis, it can be useful to run multiple TICSQServer instances in parallel by using the -parallel command line flag. Currently, it is possible to run TICSQServer in parallel for all analysis metrics, while for all the auxiliary actions it is not possible.

Important to note is that the -parallel option is not an internal option to make use of multithreading! Instead, this is used to allow multiple TICSQServer processes to run in parallel on the same database.

The actions that are currently not possible to run in parallel are the CHANGEDFILES, BUILDRELATIONS, INCLUDERELATIONS and FINALIZE actions.

The reason these actions are not possible to run in parallel is because these are either the actions that define the current state of your workspace (CHANGEDFILES, BUILDRELATIONS, INCLUDERELATIONS) or take actions that should only be done after all metrics are done (FINALIZE). If you run any of these together with the -parallel option or use any aggregators containing these (BEGIN, END, ALL) TICS will fail with an error message disallowing these options.

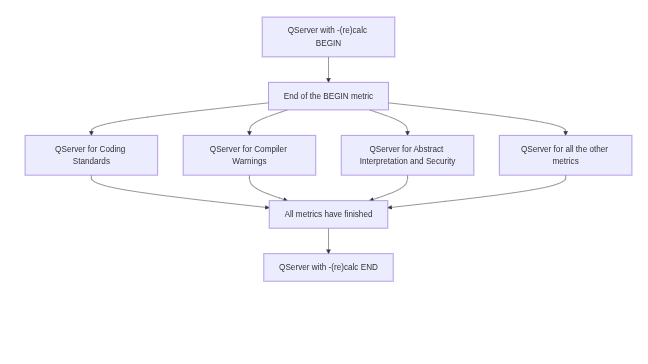

To give an idea of how you can parallelize your TICS runs, see the following image. This shows how you would set it up; first a run with -calc BEGIN, then a series of runs with -parallel and finally a -calc END.

Note that you may not want to run all metrics in parallel in separate processes. In general, if you use the same tool to run two metrics (for instance: Coverity for Abstract Interpretation and Security) you want to run these metrics together in the same TICSQServer invocation. In that case, TICS can handle both metrics at once while needing less tool invocations, which will lead to a net time gain.


Command Line options

The following TICSQServer options are allowed.

-archivefile file
use the given archive file for the archive extraction
-branchname branch name
calculate only the branch with branch name
-calc metric
calculate the specified (comma separated) metric type(s) [default: on]
-config string
use the given compiler configuration
-deltaonly
show only new violations relative to the database
-err file
write error messages to the specified file
-exitsqa
use the QA acceptation as exit code
-help
show this help info
-language language
calculate only files of the given language
-level int
show violations upto the specified level
-log int
show diagnostic messages upto the specified log level
-logdir dir
use the specified directory for server log files
-new
only check files that are new to the archive
-noautorecalc
do not trigger automatic recalculation due to ruleset changes or checker upgrades
-nobackup
do not backup the current version of the database
-nocalc metric
do not calculate the specified (comma separated) metric type(s)
-noclobber
do not overwrite the global log file (but append to it instead)
-nodelta
do not show deltas
-nologo
suppress TICS logo output
-nomail
do not send error or status mails
-norecalc metric
do not recalculate the specified (comma separated) metric type(s) for unchanged files
-nosanity
do not perform sanity checks
-nowarn
suppress all warnings
-overviews
show violation overview tables [default: on]
-project string
quality database to update
-recalc metric
recalculate the specified (comma separated) metric type(s) for unchanged files
-results
show violation messages [default: on]
-setbaseline name[,delta:(0|1)][,plotline:(0|1)]
set baseline name for a project
-shownew
annotate new violations relative to the database
-showresolved
show resolved violations in violation overview
-showsuppressions
show suppressed violations in violation overview
-showsynopsis
show rule synopsis in violation overview [default: on]
-sort level|linenr|new
sort the violations according to the specified criterion (default 'linenr')
-st
dump stack trace in case of errors
-timeinfo
show timing information on individual process stages [default: on]
-tmpdir dir
use the specified directory for intermediate files
-today yyyy-mm-dd|yyyy-mm-dd HH:MM:SS
run with the given timestamp as start date/time
-totaloverviews
show cumulative violation overview tables [default: on]
-version
show version info and exit
